| WD2000 | 4000 | 1R | H425 | D |
| Specification series | Total length of track | Number of robots | Height of base from ground | Number of external pallets for electrical box/carrier |
| 3000mm | 1 set of robot | 425mm | None: No pallet/Robot only | |
| 4000mm | 2 sets of robot | D: Only the electric box and single pallet are moving | ||
| 5000mm | Z: Only the stage and the pallet move | |||
| 6000mm | DZ: Electric box + stage with double pallets | |||
| 7000mm | ||||
| 8000mm | ||||
| 9000mm | ||||
| 100000mm | ||||
| ......... |
| Rated load: | 2000KG |

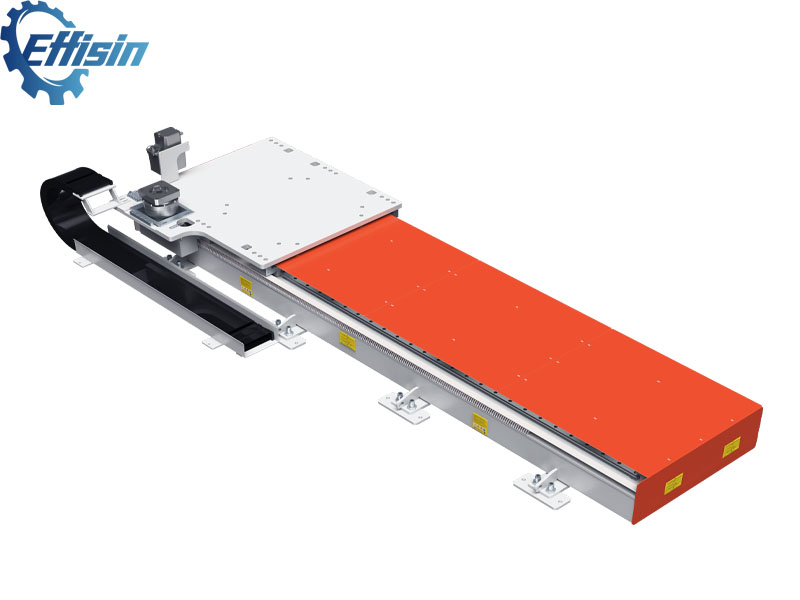

| Form: | Handling linear track (standard 950 series high rigidity cover type) |
| Applicable robots: | Any brand of robot with a load of less than 360kg |
| Customer rated power and torque: | 4.3KW/22n.m |
| Reducer model: | Standard Japan Shimpo 180 dual-stage 3 arc-minute high-precision |
| Total reduction ratio: | 20:1 |
| Rated speed: | 600mm/sec |
| Maximum speed: | 900mm/sec (customizable upon request) |
| Maximum torque: | 6000N.M |
| Electric box/carrier pallet: | Optional |
| Repeat positioning accuracy: | ±0.02mm (Note that if positioning accuracy (track accuracy) is required ,it must be requested separately) |
| Standard linear guide: | Standard AirTac (optional with Hiwin/PMI/THK) 45 heavy load type * 8 sets |
| Rack/Gear/Wool Wheel: | Hewan Jingte M4 helical gear (27 teeth, gear radius 57.3mm) gear rotation one country travel 360mm |
| Automatic cleaning system: | Standard with Taiwan Pontn automatic (with time interval control) |
| Drag chain: | Standard external blue solid semi-enclosed with baffle (internal optional) / internal size 44*200 R250 |
| Volumetric distributor/oil pipe: | Taiwan Ponton standard |
| Maximum length of a single piece: | 12 meters |
| Surface treatment: | Sandblasting/phosphating/tempering/plastic spraying |
| Horizontal axis motor mounting flange: | 180 flange/shaft 36mm clamping type |
| Robot base: | Mounts directly on skateboard or robot heightened seat |
| Trampling form: | Can be stepped on (internal keel mechanism) |
| Slide L angle plate: | Cast Steel |
| Standard colors: | (Phosphating/Sandblasting/Plastic Spraying) Standard: Main body gray white RAL7035/Sheet metal orange RAL2004 |
| Butt Extension: | Can be connected in multiple sections to extend within 100 meters |
Adapt to the unique sealing form of handling, the skateboard is directly connected to the slider with sufficient rigidity. Equipped with skateboard safety guardrail. High rigidity is suitable for low speed without shaking and high speed stability and other comprehensive Features: The frame adopts an integrated structure, and after tempering/phosphating and surface treatment, the track surface is finally fine-machined to ensure the accuracy of the track and repeat positioning accuracy.High strength/long life/free to step on/durable and other comprehensive features, suitable for any brand of welding robot. Origin and limit Omron travel switch (external axis control It is not necessary to use this control. It is optional. Please specify it when it is not used for external axis control. | |
