| WD900 | 4000 | 1R | H750 | Z |
| Specification series | Total length of track | Number of robots | Height of base from ground | Electric box welding machine/wire barrel external support plate |
| 2000mm | 1 set of robot | 500mm | None: No pallet/Robot only | |
| 3000mm | 2 sets of robot | 750mm | D: Only the electric box welding machine single pallet moves | |
| 4000mm | 950mm | Z: Only the wire barrel support plate moves | ||
| 5000mm | DZ: Electric box + welding wire barrel double pallet travel | |||
| 6000mm | ||||
| 7000mm | ||||
| 8000mm | ||||
| 9000mm | ||||
| ............ |
| Rated load : | 900KG |
| Form: | Special welding rail (Standard 500x300 high-precision closed type) |
| Applicable robots: | Any brand of welding robot within 2m radius with load less than 20kg |
| Customer rated power and torque: | 2.0KW/9.5nm |
| Reducer model: | Standard Japan Shimpo 115C dual-stage 3 arc-minute high-precision |
| Total reduction ratio: | 20:1 |
| Rated speed: | 500mm/sec |
| Maximum speed: | 600mm/sec (customizable upon request) |
| Maximum torque: | 3500N.M |
| Welding wire barrel pallet/electrical box pallet: | Optional (one side supports the welding wire barrel, the other side supports the electric box welding machine) |
| Repeat positioning accuracy: | ±0.02mm (Note that if positioning accuracy (track accuracy) is required, it must be requested separately) |
| Standard linear guide: | Standard Taiwan AINTAC (optional Hiwin/PMI/THK) 30 heavy load type * 6 sets |
| Rack/Gear/Wool Wheel: | Taiwan Jingte M2 helical gear (36 teeth, gear radius 38.2mm ) gear travels 240mm in one circle |
| Automatic lubrication system: | Standard Taiwan PONTN automatic (with time interval control) |
| Drag chain: | Standard built-in blue solid fully enclosed with baffle (external optional) / internal size 44*125 R200 |
| Volumetric distributor/oil pipe: | Taiwan Pontn standard |
| Maximum length of a single piece: | 12 meters |
| Surface treatment: | Sandblasting/phosphating/tempering/plastic spraying |
| Horizontal axis motor mounting flange: | 130 flange/shaft 22mm/holding type |
| Robot base: | Standard |
| Trampling form: | Can be stepped on (internal keel mechanism) |
| Slide L angle plate: | Cast Steel |
| Standard colors: | (Phosphating/Sandblasting/Plastic Spraying) Standard: Main body gray white RAL7035/Sheet metal orange RAL2004 |
| Butt Extension: | Can be connected in multiple sections to extend within 100 meters |

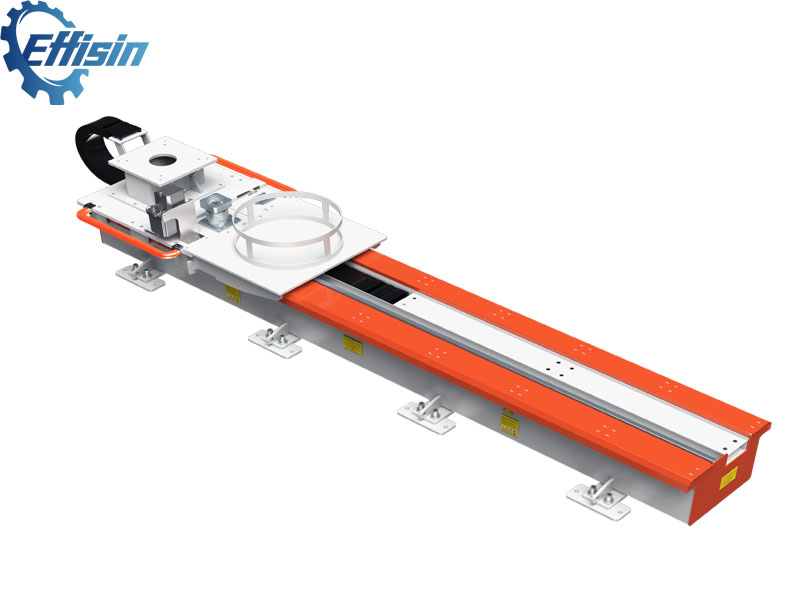

Adapt to the unique sealing form of welding, L plate is made of ductile iron casting. Equipped with skateboard safety guardrail. High rigidity is suitable for low speed without shaking and high speed stability, etc. Comprehensive features. The frame adopts an integrated structure, and after overall tempering/phosphating and surface treatment, the track surface is finally fine-machined to ensure the accuracy of the track.Features such as high repeatability, long life, free stepping, and durability make it suitable for any brand of welding robots. (Not necessary for external axis control. Please specify if it is used when not using external axis control. | |
