Head and Tail Horizontal Connection Positioner

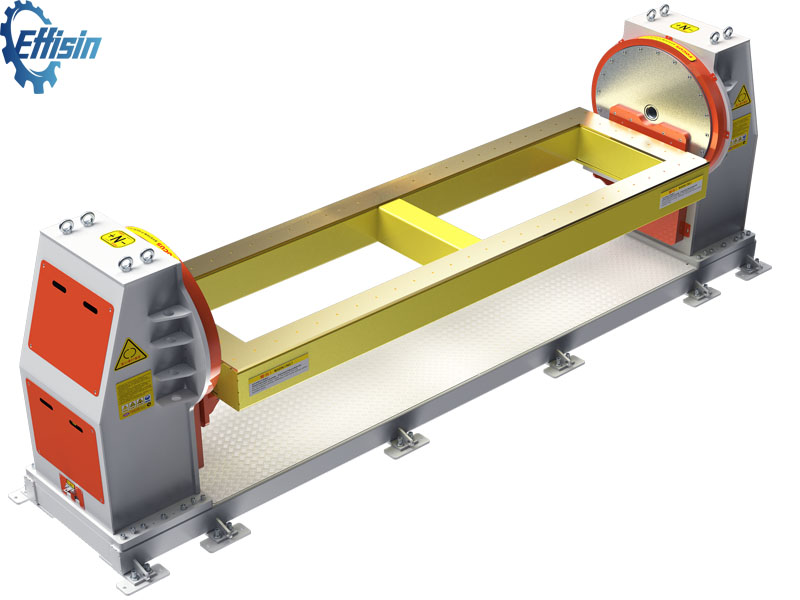

10-Ton Dual-Drive Headstock-Tailstock Welding Robotic Positioner | Custom-Frame Industrial Rotary System

Massive 10-ton payload stability! Our dual-drive headstock-tailstock positioner delivers <0.03° accuracy with customizable frames for pipes, vessels & structural beams. Robotic welding & machining solutions.

Acceptable price

Excellent quality

Overview
Specifications
Message
WB1K910000
40001400R1150
Specification seriesPayloadFrame lengthTotal frame widthFlip radius

10000KG4000mm1200mm1150mm


4500mm1400mm1350mm


5000mm1600mm1550mm


5500mm1800mm1750mm


6000mm2000mm1950mm


6500mm2200mm


7000mm
2400mm


7500mm



...............



10000mm


Rated load10000KG
Number of axes

  Single-axis dual-drive (standard equipped with double-roller

 helical rotary support version)

Recommended    motor
power andtorque
4.3KW/22n.m*2
Reducer model(320E/185+Slewing Support9)*2
Overall reduction ratio1005.94:1
Rated output speed11.9°/sec
aximum output speed17.9°/sec
Rated output torque33000N.M
Allowable eccentricity≤200mm
Repeat positioning accuracy±0.04mm(measured at R500)
Motor mounting flange180 flange/shaft 35mm/key 10mm
Time to flip 180 degrees15sec
Flip action range±360°
Frame specifications200*300 Strengthening/tempering stress removal
Column materialWelding
Conductive form

Standard 140m² soft and high temperature resistant

 tin plating wire directly connected to 500A

Driven shaft formSlewing support 9/hollow outgoing line(anti-wear line design)
Standard color

(phosphorization/sand-beating/plastic spraying)

Standard configuration:main body gray-white

RAL7035/frame yellow RAL1018/sheet metal orange RAL2004
